infraMOD ground anchors
infraMOD’s ground anchoring solutions are engineered to reduce risk, simplify installation, and support faster, more predictable excavation progress.
In combination with our engineered struts and walers, the ground anchors provide a customized site-specific solution for your project.

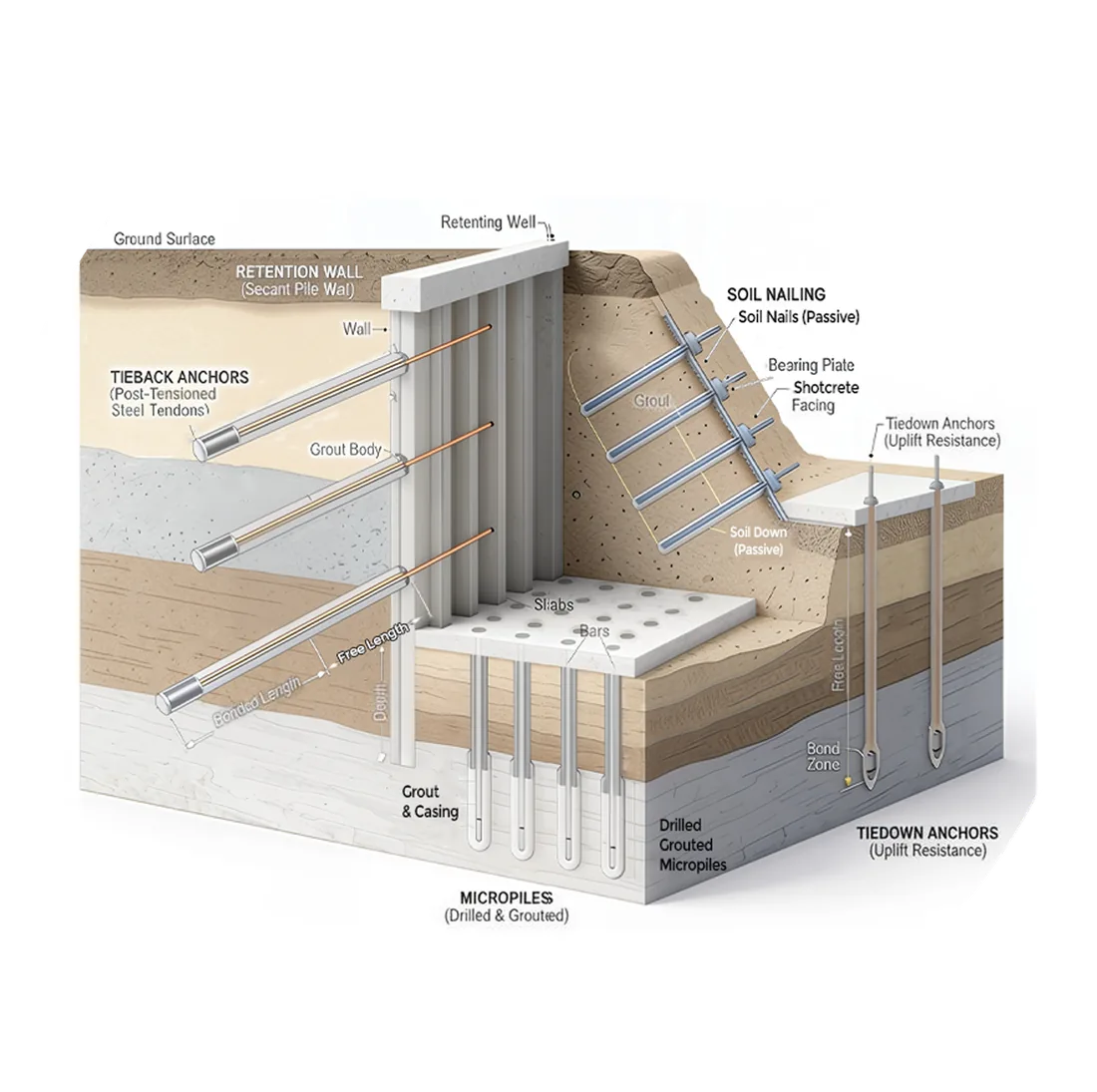

infraMOD ground anchors
Prestressed anchors that give temporary shoring lateral resistance, with load transferred to a structure.
Passive in-situ reinforcement that stabilizes excavations and slopes during top-down construction.
High-capacity, small-diameter drilled and grouted piles for tight, urban or low-headroom sites.
Tie surface structures to stable bedrock for walls, foundations and slopes.
Expanding-bulb anchors that keep rock stable in mining, tunnels and underground works.
Tiebacks and tiedowns
Temporary construction shoring requires robust and reliable support systems to ensure the safety and stability of the project. Tiebacks play a crucial role, offering enhanced lateral resistance and load-bearing capacity.

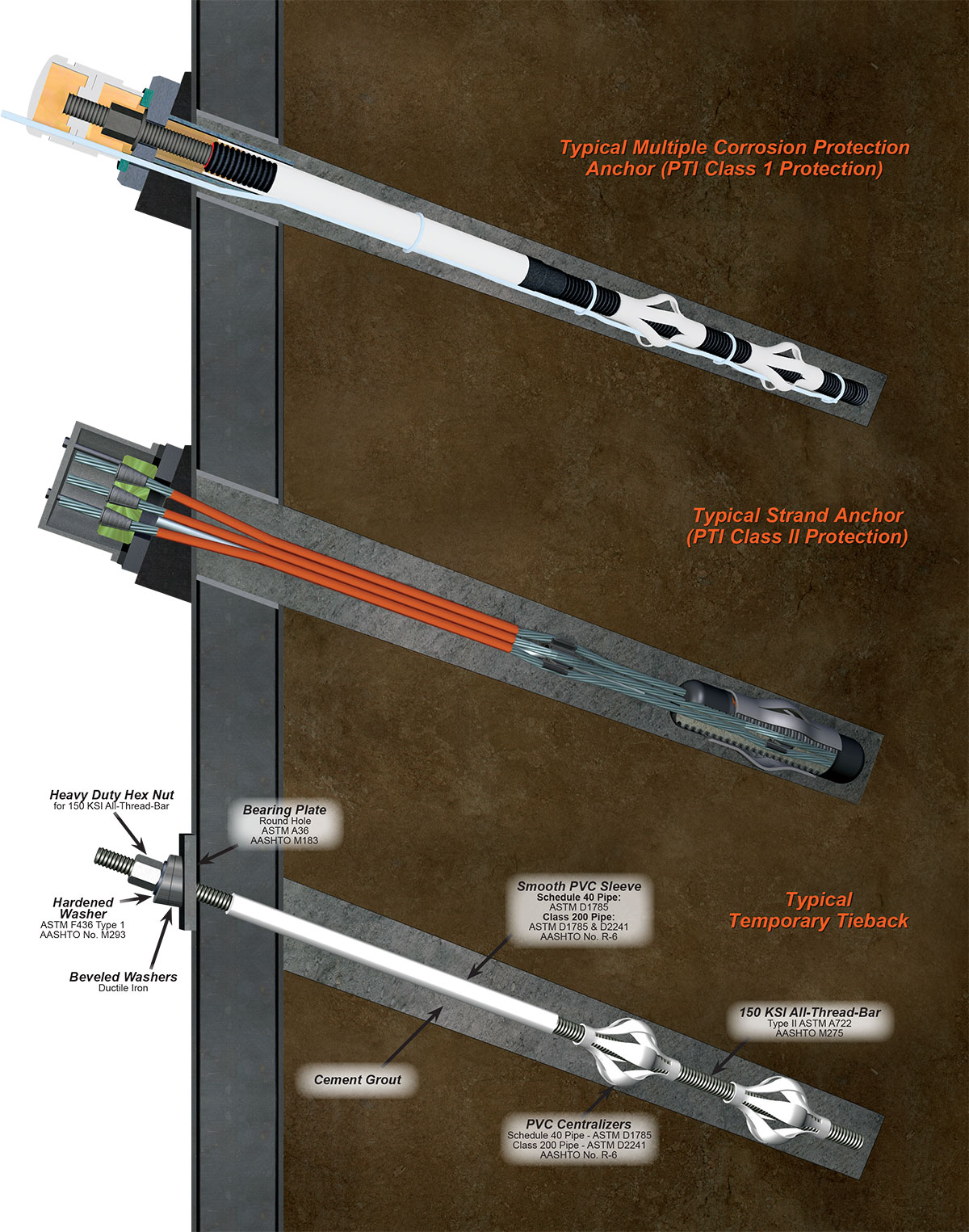

- Steel: Grade 150 ksi thread bar, or 270 ksi low-relaxation strand
- Bar diameters: 1" to 3"
- Also available: CT-Bolts for mining, tunnelling and reinforcement connections
Tiedowns and other prestressed ground anchors work on the same philosophy as the tieback anchors, with a load transfer to a structure.
infraMOD Grade 150 ksi thread bars and 270 ksi low-relaxation strand anchors have been used successfully as prestressed ground anchors across a wide variety of civil engineering applications.
Soil nails

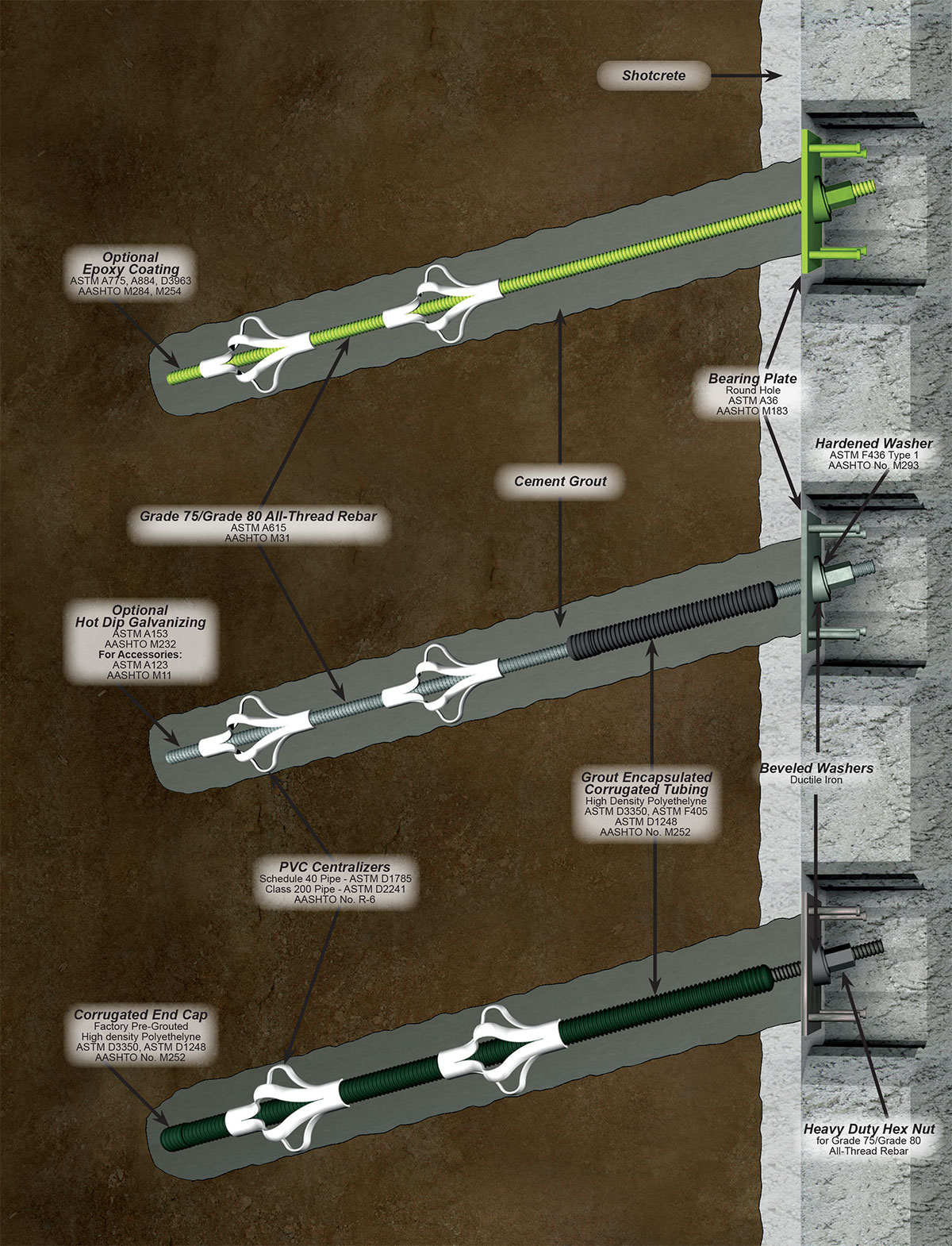

- Systems: Thread bar and hollow bar
- Grades: Grade 75 and Grade 80
- Drill hole: 4" to 10" diameter, tremie grouted with cement grout
- Working load: Not more than 60% of the bar's ultimate strength
Micropiles
Micropiles have rapidly gained popularity for foundations in urbanized areas or in locations with low headroom and restricted access.

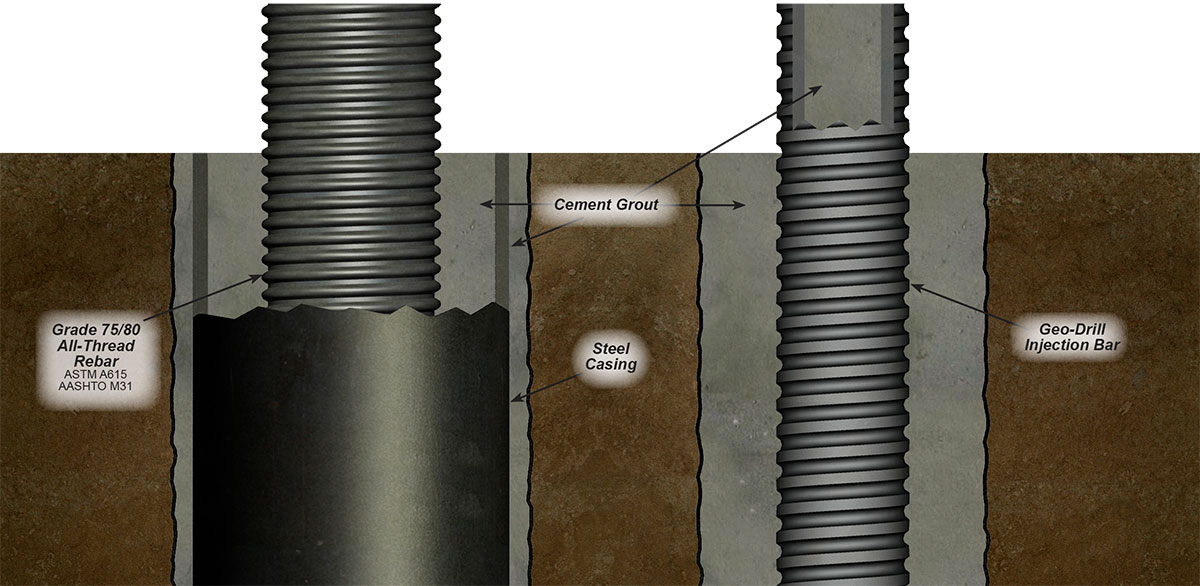

- Diameter: 5" to 12", drilled and grouted in place
- Reinforcement: Steel; infraMOD's larger thread bar diameters are a popular choice
- Best for: Underpinning and emergency repairs
Foundation-bearing micropiles transfer structural loads through weak or unstable soils into competent load-bearing strata, with superior support even in complex geotechnical environments.
They can be installed in virtually any ground condition with minimal vibration and disturbance to existing structures.
Rock anchors

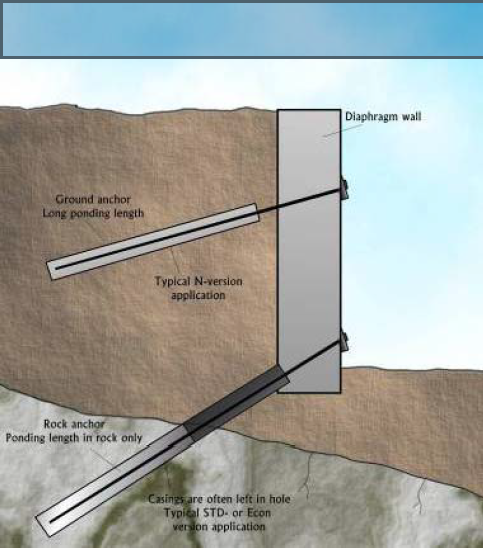

- Principle: A secure connection between surface structures and stable rock deep below
- Advantages: Cost-effective, rapid installation, high bond capacities that limit anchor length
- Installation: Versatile equipment that works from small benches or above unstable slopes
CT bolts

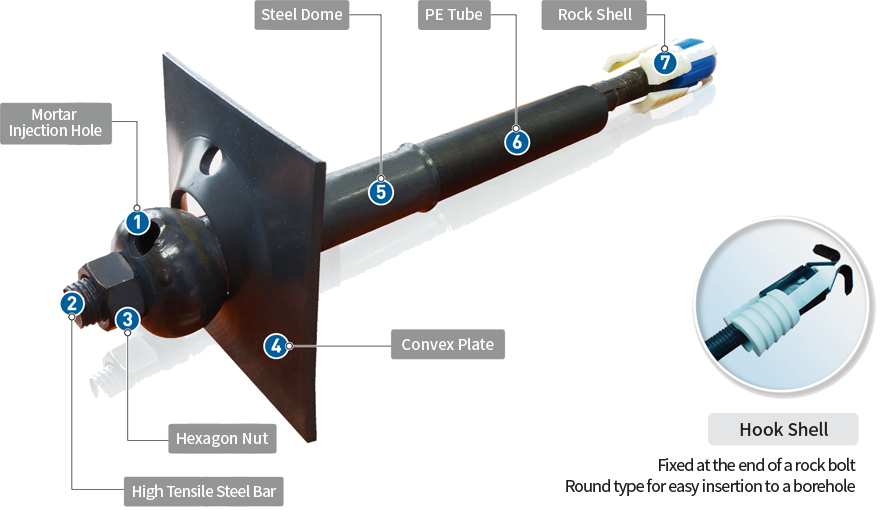

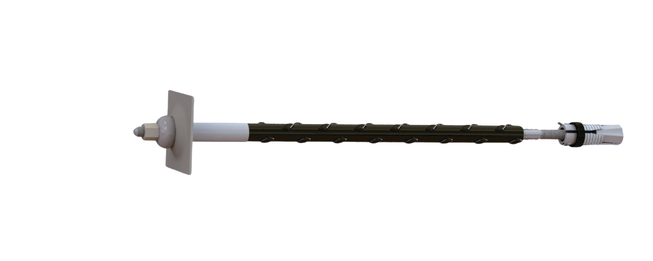

The infraMOD CT bolt is a specialized anchor designed for underground mining, to ensure the stability of rock and prevent the collapse of galleries, tunnels and other subterranean structures.

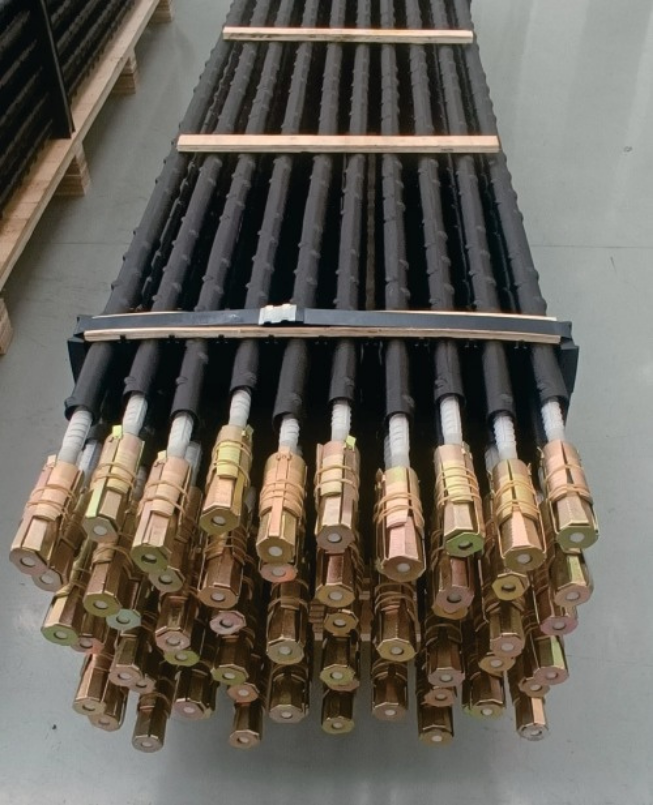

- Parts: Steel bar with a head at one end; plate and expanding bulb at the other
- How it holds: The bulb expands when the rod is tensioned, anchoring the bolt in the surrounding rock
- Used in: Underground mining, subway tunnels, dams, water works and bridges
These bolts are essential for maintaining safety in areas with unstable rock conditions, and are frequently used in tunneling projects like subways.
They are also critical for infrastructure such as dams, water works and bridges, where underground tunneling and excavation are involved.
Thread bar properties
| Nominal dia. | Area | Min. yield strength | Min. ultimate strength | Weight | Max. bar dia. | Elongation | ||
|---|---|---|---|---|---|---|---|---|
| in. | mm | sq. in. | kips | kips | lbs./ft. | in. | Ags (%) | A10 (%) |
| 1″ | 26.5 | 0.85 | 118 | 130 | 3.01 | 1.22 | 5 | 7 |
| 1-1/4″ | 32 | 1.25 | 171 | 190 | 4.39 | 1.46 | ||
| 1-3/8″ | 36 | 1.58 | 216 | 241 | 5.56 | 1.65 | ||
| 1-5/8″ | 40 | 1.95 | 268 | 297 | 6.86 | 1.81 | ||
| 1-7/8″ | 47 | 2.69 | 371 | 409 | 9.47 | 2.09 | ||
| 2-1/4″ | 57 | 4.00 | 484 | 600 | 14.08 | 2.49 | 4 | 7 |
| 2-1/2″ | 65 | 5.16 | 625 | 775 | 18.18 | 2.8 | ||
| 3″ | 75 | 6.85 | 830 | 1028 | 24.12 | 3.21 | ||
| Nominal dia. | Area | Min. yield strength | Min. ultimate strength | Weight | Max. bar dia. | Elongation | ||
|---|---|---|---|---|---|---|---|---|
| in. | mm | sq. in. | kips | kips | lbs./ft. | in. | Ags (%) | A10 (%) |
| 1″ | 25 | 0.76 | 60.9 | 79.4 | 2.59 | 1.14 | 6 | 10 |
| 1-1/8″ | 28 | 0.955 | 76.4 | 100.3 | 3.25 | 1.26 | ||
| 1-1/4″ | 32 | 1.246 | 99.7 | 130.8 | 4.24 | 1.42 | ||
| 1-3/8″ | 36 | 1.581 | 126.5 | 166 | 5.37 | 1.61 | ||
| 1-3/4″ | 43 | 2.251 | 180.1 | 236.4 | 7.66 | 1.89 | ||
| 2-1/4″ | 57.5 | 4.03 | 322 | 422.6 | 13.69 | 2.48 | 5 | 10 |
| 2-1/2″ | 63.5 | 4.909 | 392.7 | 515.5 | 16.71 | 2.76 | –* | |
* The brochure lists this A10 elongation cell as 2-1/2″. Confirm the value with infraMOD.
| Description | Size | MOQ (pcs) | kgs/pc |
|---|---|---|---|
| Sheathing | M33X6700 | 4000 | – |
| Dome plate | 210x210x10, HDG coating 85um+epoxy 70um | 4000 | 3 |
| Grouting bell | M33, HDG coating 85um+epoxy 70um | 4000 | 2 |
| Hex nut | M33, HDG coating 85um+epoxy 70um | 4000 | 0 |
| Expansion shell | M33, ZINC PLATE | 4000 | 1 |
| Thread bar | M33X7000, HDG coating 85um+epoxy 70um | 400 | 540 |
Quantities and weights are shown as printed in the brochure.
Load limit calculator
Pick a grade and size to see load limits as a share of the bar's minimum ultimate strength (fu). For preliminary reference only; final design stays with the project engineer.
